Shadows on PV panels

Shadows on PV panels are a problem, but just how significant are they? The time is 16.45 and it's two months before the summer solstice.

Naturally this will look very different in winter and at this stage I'm unsure of the effect. I should have been taking photos year round.

This page last updated on 3rd November, 2018.

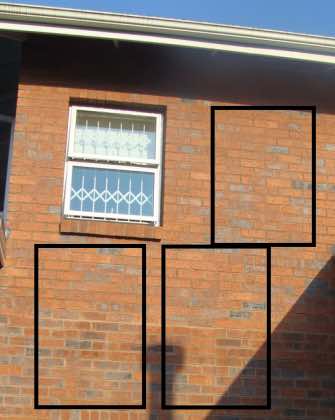

West facing photovoltaic panels

Table of contents

  • Voltage
  • Amperage
  • Shadows on two panels in series
  • Grumpy
  • Conclusions
  • Solar power energy

I was planning to put three large 300W photovoltaic cells up on this west facing wall for extra energy in the late afternoon; that's when the boss is cooking. But how significant is the shading due to the roof and the chimney going to be?

Elsewhere we'll discuss the merits of siting the panels where they will only get direct bright light for half the day. Perhaps some mirrors to reflect the morning sun onto them might be an idea; that is how the large scale commercial solar plants work.

From noon until 16.00 hours these three panels will get full sunshine but then the silhouette of the roof and the chimney will start affecting the lower right panel. How significant will it be?

Conventional wisdom is that shadows drastically affect the performance of PV panels. Shall we test that belief?

We will do two little experiments.

  1. How does increasing shadow affect the output of one panel?
  2. How does a shadow across one panel affect two photovoltaic cells in series?

Shadows on PV panels

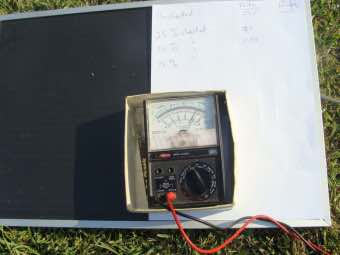

First then shading part of this small panel with a sheet of paper; how does it affect the voltage and amperage?

PV 50 percent page

Voltage

Shading

Unshaded

25% shading

50% shading

75% shading

Voltage

23V

22V

21.5V

20V

We can conclude that shading has remarkably little affect on the voltage.

Amperage

Shading

Unshaded

25% shading

50%

75%

Current (mA)

75

54

45

13

Shading up to about half the panel has more or less the expected result; the current roughly drops accordingly.

But after that increased shading dramatically affects the output of a PV panel.

Of course, in the late afternoon the intensity of the overall light decreases anyway, so one is expecting a fall off in amperage.

I'm quite intrigued to see just how much that will be with these panels facing directly west.

Setting the PVs west instead of north has raised some eyebrows; is it totally dumb? I don't think so as we have a surplus of power in the middle of the day, but too little in the late afternoon; in the morning too. In due course I may consider three east-facing solar panels.

More storage would be another option but, with a 48V system, that means four more batteries at around 500 dollars each. Adding a few west facing PV panels is to my mind a better solution.


Newsletter

Our newsletter is entitled "create a cyan zone" at your home, preserving both yourself and Mother Earth for future generations; and your family too, of course. We promise not to spam you with daily emails promoting various products. You may get an occasional nudge to buy one of my books.

Here are the back issues.

  • Investing in long-term health
  • Diseases from plastic exposure
  • Intensive lifestyle management for obesity has limited value
  • A world largely devoid of Parkinson's Disease
  • The impact of friendly bacteria in the tum on the prevention of cancer
  • There's a hole in the bucket
  • Everyone is talking about weight loss drugs
  • Pull the sweet tooth
  • If you suffer from heartburn plant a susu
  • Refined maize meal and stunting
  • Should agriculture and industry get priority for water and electricity?
  • Nature is calling
  • Mill your own flour
  • Bake your own sourdough bread
  • Microplastics from our water
  • Alternative types of water storage
  • Wear your clothes out
  • Comfort foods
  • Create a bee-friendly environment
  • Go to bed slightly hungry
  • Keep bees
  • Blue zone folk are religious
  • Reduce plastic waste
  • Family is important
  • What can go in compost?
  • Grow broad beans for longevity
  • Harvest and store sunshine
  • Blue zone exercise
  • Harvest and store your rainwater
  • Create a cyan zone at your home

Shadows on two panels in series

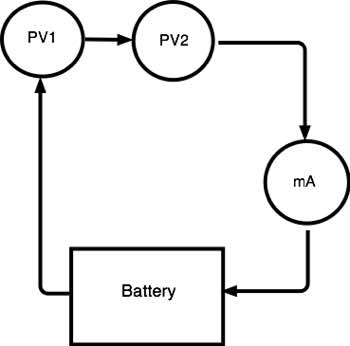

Two PVs circuit with shading

Here are two old small PVs that we are using for testing the affect of shading on the performance.

One is cracked after being hit by a hailstone (I think) and surprising it hasn't affected the generation of current.

Solar two PVs shading

What is the affect of shading one panel?

Shading 1 panel

Unshaded

1 panel 50% shading

75%

100%

Amperage (mA)

140

100

60

0

Shading one panel by 50% has a relatively small affect on the performance of two panels in series.

But shading one panel completely negates the effect of the other panel, even though it's in full sun. If one panel is shaded significantly, the output of the whole string drops to zero.

What is the effect of shading both panels?

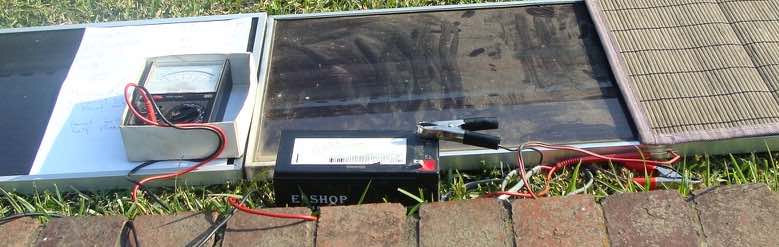

Solar PVs both half shaded

Shading

None

Both 50%

Current (mA)

140

85

Shading both panels by 50% has roughly the expected affect. The current drops by slightly less than half.

However, if we increase the shading on either or both more than 50% we can expect a dramatic drop off in performance of the combo.

I'll be using three panels in series, and expect the result to be more or less the same.

Grumpy

Weaver's nest shadow

Few things make the family more grumpy than when Bernie's solar powered gate motor doesn't work. In my defence, we've had no problem since upgrading from the useless little 7Ah batteries to a golfcart 40Ah.

This week was something different. The weavers have started building their nests and one, in the main part of the day, was giving shadows on PV panels; the output drops quite significantly.

Conclusions

I've decided that the shadows falling across one panel, but not affecting the other two, will be significant but not disastrous until the very late afternoon when the shadows start to cover more than half that one right lower panel.

Let see if practice confirms the theory?

This page is in development. The brackets for the three panels are complete, but need to be painted and erected.

I'm expecting a big increase in mid to late afternoon power with these three panels directly facing the sun. That's when she who must be obeyed will be cooking the evening dinner.

Further conclusions are that the effect of shadows is very panel dependent; on the larger panels even small shadows had quite a serious detrimental effect on the power outage.

West facing PV panels 3 x 310V

After noting the shift of shadows on this wall as winter advances, I've made an about turn. Instead I've opted for west facing solar panels on the roof.

Life is full of compromises; flat on the roof is much simpler and more attractive, but I was looking for late afternoon sun; these on the roof would optimise around 2pm but are less effective later; they should really be at 60 degrees for the late afternoon sun; then they are subject to strong winds.

So, instead, I've built three mobile solar carts to catch the early morning instead of east facing solar panels, and late afternoon sun. It was an experiment, a fun thing to do, but they've turned out to be very effective.

Solar cart shadows

For example, on this mark I solar cart, the relatively small shadows from the transverse bar and handles dropped the output by more than 15%.

Mobile solar panel

So, Mark II has a removable handle, and the bar has been moved behind the pivot point. These three mobile panels are providing between 700-800 watts for much of the day; more important, on the steepest setting they provide much needed power just after sunrise, and as the sun is waning in the late afternoon; and in the early morning.

Mobile solar carts

The frustration of these is that despite being relatively cheap overall, as a stand alone they will only supply LED lights and a laptop and TV. That means you will have power but the overall reduction in your utility bill will be small; they will do little for the environment.

But as an add-on to your existing system, without a great deal of extra infrastructure, the payback time is much shorter, and they provide much needed energy early and late in the day. In our own case the addition of these mobile panels means that we could seriously consider going off the grid.

Update on shadows on PV panels

The three mobile solar carts with the same panels as those above, fixed on a west-facing roof, are providing a lot more energy because they can be turned, and the angle altered as the sun dips towards the horizon; they can be moved as shadows on PV panels from trees and buildings move during the seasons.

We are working on making it more user friendly, and then will come out with do it yourself plans.

If you're a greenie, life can never be boring; there's always something new to be tested, built or tried. Right now it's mobile solar panels and breeding chicks; life's fun!

Solar power energy

Solar power energy comes for free, courtesy of Mr Golden Sun. Plants collect it by virtue of photosynthesis, and humans using photovoltaic cells and vacuum tubes; shadows on PV panels are a very important consideration.

Shadows on some solar panels in series are only a major headache when they start to cover more than half the area of one panel. But with others like our mobile solar carts even a small shadow from a tree overhead immediately drops the output of the whole string.

I've just had to move the PV panel that supplies our solar gate motor because the avocado tree has grown and started partially shading it for some of the day; never a dull moment.
